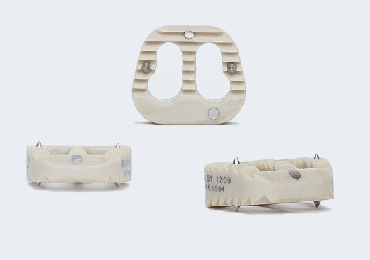

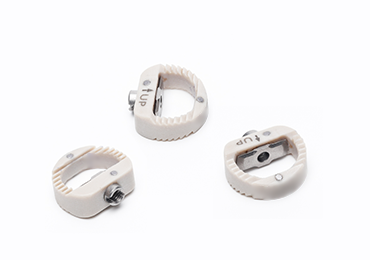

ServPEEK

---

CERVICAL PEEK CAGE

• Not lesion persistent that produced by peek material compatible with MR
• Best fit with anatomic structure
• Tantalum marker
• Implantable with Smith-Robinson Technic
• Strong fixation by superior and inferior area with threaded surface and two titanium pins

ServPEEK X

---

CERVICAL BLADED PEEK CAGE

• Locking blade mechanism
• Tantalum marker
• Threaded surface
• 2 angle for compatibility with anatomy
• Provide saving of time and facility with applications method
• Large graft area

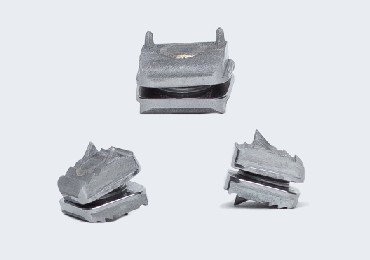

ServTURN P

---

CERVICAL DISC PROSTHESIS

• The physical structure of the device consists of three pieces, Titanium Alloy inferior and superior endplates and polyethylene pieces
• High mobility with inner surface super polishing and polyethylene insert
• Provide saving of time and facility with applications method
• Ease of use with peek holder

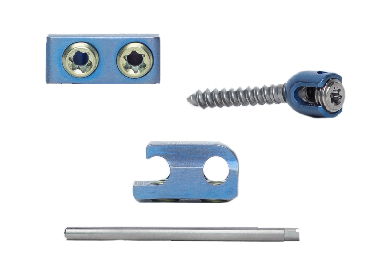

HC-PED

---

POSTERIOR THORACLOUMBAR FIXATION SYSTEM

• Low-Profile System
• Easy Lock System
• Cylindrical feature Self-Tapping
• 57 degree with polyaxial screws
• Implantable pedicle screws as a Monoaxial and Polyaxial screw
• Designed to minimize soft tissue interaction
• Excellent anchoring stability of the implants guaranties lasting safety

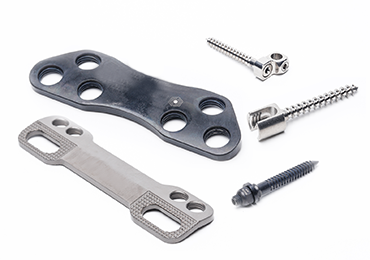

ThorFIX

---

ANTERIOR THORACLOUMBAR FIXATION SYSTEM

• Double Rod System with agrafe joint
• Straight Plate, self-locking screws, nuts and washers create a rigid fixation
• Plate has two different holes which are rounded and elliptical for universal Locking screws and self locking screws
• Single rod system
• Anterior Fixation for thoracolumbar vertebrae

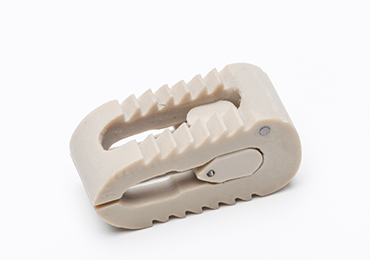

InterPEEK T

---

TLIF PEEK CAGE

• The cage and the holder are initially lined up to facilitate entry
• The wedge like profile makes the cage insertion process a straight forward and easy task
• The biocompatibility and mechanical properties are perfectly suited for interbody applications
• The cage is moved to its final location with minimal effort with movable titanium part
• Allow for a higher volume of bone grafting material resulting in good bony ingrowth
• Tantalum marker

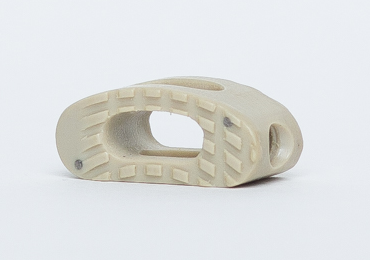

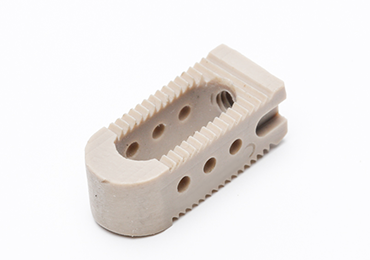

InterPEEK P

---

PLIF PEEK CAGE

• Tantalum marker
• Bulleted anterior profile facilitates cage insertion into the interverbral space
• Open design of the upper and lower surfaces allows optimum graft surface to improve bone fusion
• Retaining teeth and biconvex profile prevent implant migration
• Revolutionary instrumentation to ensure safety and efficiency during posterior lumbar

InterPEEK PX

---

PLIF EXPANDABLE PEEK CAGE

• Dont allow any lesional problems
• Implanted from posterior approach for following indications; Mechanical instability, Sponylolisthesis
• Threaded surface feature facilities a strong fixation by superior and inferior area
• Height can be increased by 1mm at least

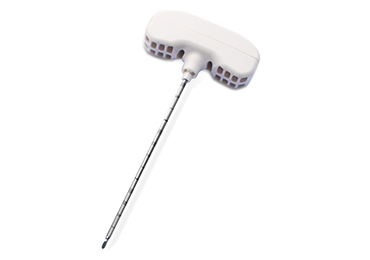

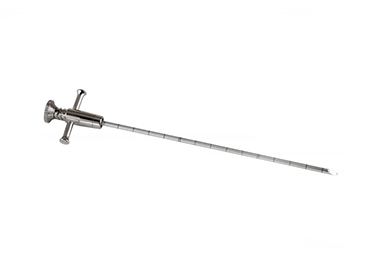

VERTEXSTEEL

---

Vertebroplasty needle STEEL handle

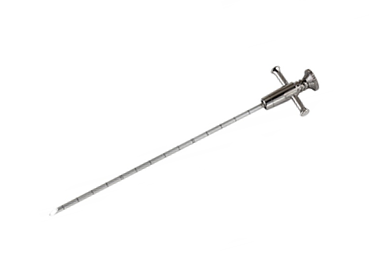

VERTEXTITAN

---

Vertebroplasty needle TITANIUM handle

VERTEXPLAST

---

Vertebroplasty needle PLASTIC handle with BLOCKING SYSTEM

Synth-X SL

---

Low Viscosity

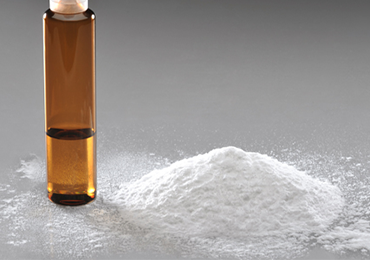

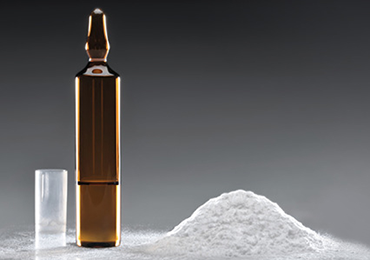

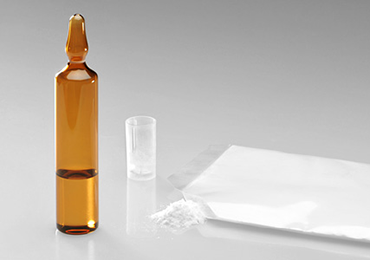

Synth-X SL is a low viscosity radiopaque bone cement for vertebroplasty, allowing excellent stabilisation of the vertebral body. The very high concentration of zirconium oxide in this cement allows it to be used during vertebroplasty procedures during which continuous radiological monitoring is performed using a scanner or image intensifier. The operator can then immediately follow the flow of cement from the very beginning of filling of the vertebral body, so avoiding the risks of leaks, the most frequently-encountered problem during vertebroplasty procedures. Synth-X SL comes as an ampoule of sterile liquid and a pouch of sterile powder (liquid monomer and powder polymer).

Synth-X SM

---

Medium Viscosity

Synth-X SM cement, manufactured in accordance with standard ISO 5833, is a medium viscosity, ready-to-use cement containing a high concentration of radio-opaque agent, making it highly visible and therefore safe to use, both essential parameters during a percutaneous vertebroplasty/kyphoplasty procedure. The chemical composition has been optimized to get the must suitable handling properties for pratician’s convenience. Synth-X SM comes as an ampoule of sterile liquid and a pouch of sterile powder (liquid monomer and powder polymer).

Synth-X SH

---

High Viscosity

Synth-X SH, made in accordance with the ISO 5833 Standard, is a high-viscosity, ready-to-use cement suitable for immediate and stable fixation of pathological fractures in a vertebral body. The cement contains a large quantity of a radiopaque agent (27% BaSO4 and 9% HAP) allowing perfect visualisation, an essential feature during percutaneous vertebroplasty or kyphoplasty procedures. Synth-X SH comes in the form of an ampoule of sterile liquid and a sachet of sterile powder (a liquid monomer and a powder polymer).

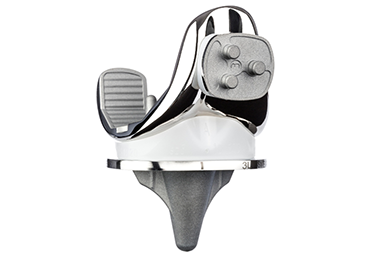

PROX Knee

---

PROX Knee system is a highly congruent mobile bearing surface replacement for cemented, cementless or hybrid use. It consists of four components, that are available in several variations: a femoral component, an insert, a tibial and a patellar component. The implant system was developed and tested according to the latest state of the art technology.

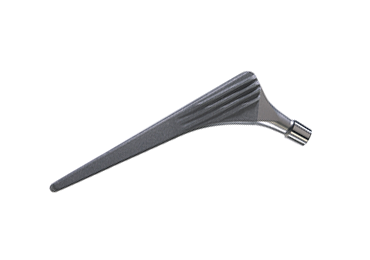

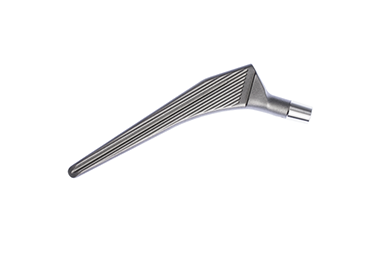

TRU

---

Over decades, TRU Straight Stem has been safely used as a hip endoprosthesis for cemented fixation in the femur and is one of the most commonly used cemented implants worldwide. Produced from CoCrMo casting alloy (ISO 5832-4) or implant steel (ISO 5832-9) and fitted with a 12/14 cone, TRU Straight Stem can be combined with both metal and ceramic femoral heads. One standard and one lateral version, each in 11 different sizes, are available.

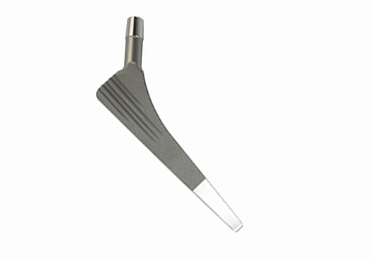

REDUX

---

The neck and shoulder regions are matt finished with glass spheres. The stem is abraded proximally with high-grade corundum. The double-tapered stem design, which has proven itself over decades, and the anterior and posterior fins ensure secure and rotationstable fixation. The sharp-edged fins permit optimal ingrowth and natural transmission of force into the bone.

SPT

---

SPT hip stem is a hip endoprosthesis for cementless anchoring in the femur. The principle is based on the findings of Prof. Lorenzo Spotorno, which has been tried and tested for more than 20 years. Produced from a titanium wrought alloy (ISO 5832-11) and fitted with a 12/14 cone, the stem can be combined with both metal and ceramic femoral heads.

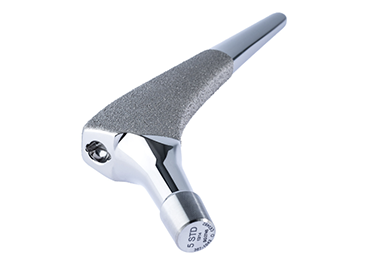

TRU CL

---

TRU CL Hip Stem is a hip endoprosthesis for cementless fixation in the femur. It is made of titanium wrought alloy (TiAl6V4 ISO 5832-3) and comes equipped with a 12/14 cone.

The stem can be combined with both metal and ceramic femoral heads. In addition to the standard variant a lateralised version is available.

TRU II

---

The cemented TRU II polyethylene cup supports the cemented treatment of the acetabulum.

The TRU II Cup, with its wide range of internal and external diameters, covers a very broad scope of indications. To ensure an optimal fit of the cup in the damaged acetabulum, TRU II Cup is available with an outer diameter in 2 mm increments. All sizes feature the minimum wall thickness of 6 mm required by code.

The special hemispherical outside contour of this cup permits an optimal cement flow between acetabulum and cup with bone loss. To ensure radiographic visibility, all implants are equipped with a surgical steel ring (ISO 5832-1). The dysplasia versions have an added notch and X-ray pin at their uppermost point. To prevent hip dislocation, the internal contour of the cup in the snap-fit version has been designed so that the connection with the push-on head can be released only with considerable force.

REDUX S

---

REDUX S system with its modular structure is designed for cementless anchoring in the acetabulum.

The spherical outer shell with a flattened pole is made of Ti6Al4V alloy (ISO 5832-3). The surface is rough after being abraded. For REDUX S Cup polyethylene inlays are available in differrent head diameters. A dysplasia inlay is also available. An individual inlay is availbale for every cup size which affords a minimal wall thickness for the outer shell. Primary stability is achieved with a dynamic press-fit.

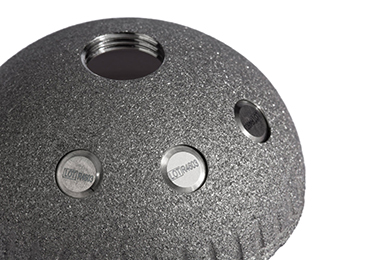

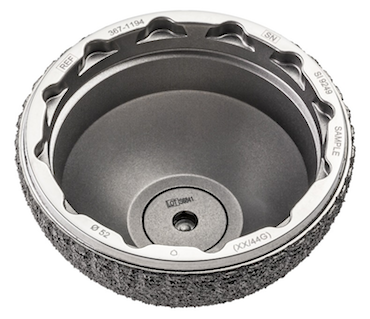

PRIMO

---

The Primo Cup is a modular acetabular endoprosthetic system with TPS coating for cementless fixation in the acetabulum. The hemispherical outer cup with flattening of the poles is made of biocompatible TiAl6V4 alloy (ISO 5832-3). The Primo Cup is also available with a CaP coating. The outside diameter of the cup sizes ranges from 44 millimetres to 68 millimetres.

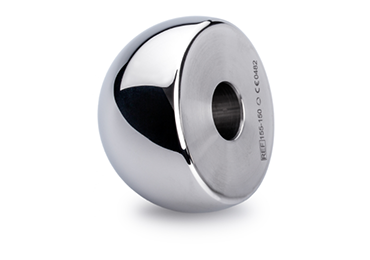

Bipolar/Unipolar Head

---

The Bipolar Head is suited particularly to the management of femoral neck fractures. The large contact area and highly polished metal surface of the Bipolar Head ensures the best possible protection of acetabular cartilage. Different centres of rotation for the femoral head and outer shell of the Bipolar Head lead to a self-centering of the implant. The removable safety ring provides optimal protection against dislocation. The Bipolar Head can be combined with all available femoral head materials.

The Unipolar Head is suited particularly for the treatment of femoral head fractures in very elderly patients. Because it is easy to work with the Unipolar Head, the stress on the patient is low and the operation duration is shorter. The large diameter prevents dislocation, which is crucial to the rapid mobilisation of the patient. The highly polished metal surface is particularly gentle on the natural acetabulum.

Femoral Heads

---

When used with modular endoprosthetic hip systems, femoral heads act as the articulation partner between the hip stem and the cup component. Polyethylene components are used as a gliding partner for metal femoral heads.

They can also be used with PE inlays for cementless outer cups or with cemented polyethylene cups. Furthermore, they can be used for bipolar heads with polyethylene inserts. Ceramic femoral heads can, in addition, articulate with ceramic inserts.

Synth-X OL

---

Low Viscosity

Synth-X OL is a PMMA acrylic bone cement for fastening prostheses to the bone during orthopaedic surgery.

Synth-X OL is a self-hardening, low viscosity cement, it is recommended to use a syringe for its application, being less viscous than Synth-X OH.

Synth-X OL+ (Antibiotic)

---

Low Viscosity

Synth-X OL+ is a PMMA acrylic bone cement loaded with gentamicin for fastening prostheses to the bone during orthopaedic surgery.

Synth-X OL+ is a low viscosity, self-hardening cement recommended for application using a syringe.

Synth-X OM+ (Antibiotic)

---

Medium Viscosity

Synth-X OM+ is a ready-to-use, medium viscosity cement, specifically developed for the latest medical cementation techniques.

It contains an aminoglycoside antibiotic, gentamicin. Its wide spectrum of activity makes it effective against the majority of bacteria responsible for infections associated with orthopaedic surgery.

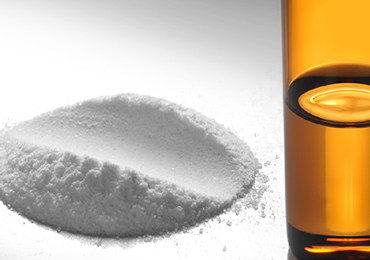

It comes in the form of an ampoule of sterile liquid monomer and a sachet of sterile polymer powder.

The product complies with the ISO 5833 Standard.

Synth-X OH

---

High Viscosity

Synth-X OH is a bone cement for securing prostheses to the bone during surgery following a trauma or other infections, as well as during revision surgery for previous arthroplasties.

Synth-X OH has a standard viscosity, sets rapidly, is self-hardening, minimises setting time and it can be applied manually.

Synth-X OH+ (Antibiotic)

---

High Viscosity

Synth-X OH+ is a PMMA acrylic bone cement loaded with gentamycin for fastening prostheses to the bone during orthopaedic surgery.

Synth-X OH+ is a high viscosity, self-hardening cement recommended for manual application.
